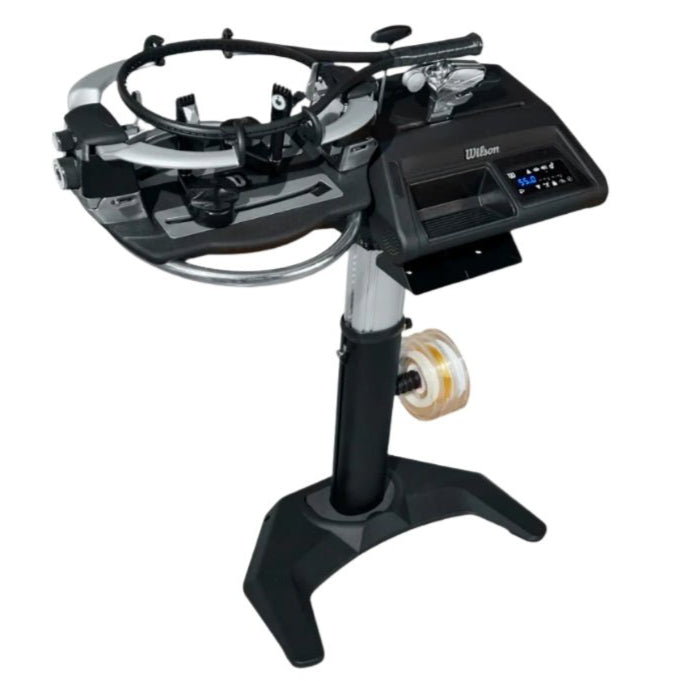

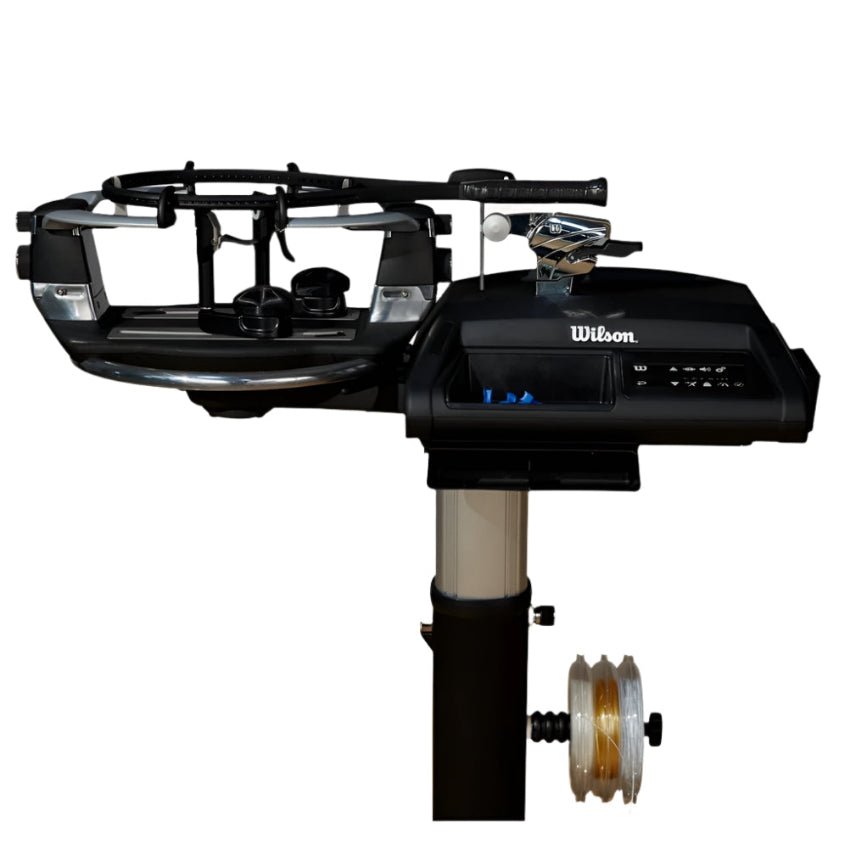

Wilson Baiardo L Stringing Machine

The Baiardo L builds upon the architecture and design of the award-winning Wilson Baiardo machine with a commitment to lightweight efficiency and practicality. Weighing 20% lighter than the original Baiardo, this machine maintains a sleek look with a few new features: manual up-down tilt for ideal ergonomic design, five-teeth clamps to minimize string interference, mounting posts that adjust inward to better fit badminton racquets, and a reel rack on the floor stand that holds string reels for added convenience. Users can toggle between KG and LBS, select from three pulling speeds, adjust pre-stretch up to 20%, and tie off knots with 10% extra tension. Additional settings on the display include calibration, touch button sensitivity, and ability to view number of rackets strung. Machine comes with necessary assembly tools and quick set-up sheet to guide users. Machine must be assembled with at least two people.

5 Tooth Clamps - To maximize grip and minimize string interference, the Baiardo L features five tooth clamps instead of the whiter 4 tooth clamps of the original Baiardo.

Manual Height and Tilt Adjustment - Practical ergonomic design and comfort, the heights and tilt of the Bairado L is manually adjustable. Read operation manual for additional details.

Display Interface - Offering a simple and easy to use interface, the BAIARDO L display includes a number of useful functions for stringers, including puller speed, pre stretch, not tensioning and calibration.

Adjustable Mounting Posts - The Baiardo L features mounting post that can spring forward to better accommodate badminton rackets. badminton adapter kit also included.

Reel Rack - New to the Baiardo L, the real rack is located on the right side of the base column for stringers to conveniently store reels of string.

Wilson Baiardo L String Machine Specs:

• Assembled weight: 43.6 KG / 96.2 lb
• Width: 104 cm/41 in
• Height at maximum extension: 130.4 cm/51.3 in
• Height at minimum extension: 100.4 cm/39.5 in
• Angle of stand: 7 degrees
• Power supply: External switching, 100-240 volts (60 watts)
• Machine top box size: L118.5 x W53.5 x H50 cm / L46.5 x W21 x H19.5 in
• Machine top box weight: 44.7 KG/98.5 lbg
• Machine base box size: L82 x W57.5 x H30 cm/L32.5 x W22.5 x H12 in
• Machine base box weight: L82 x W57.5 x H30 cm/L32.5 x W22.5 x H12 in
• Main material: Aluminum (25% recycled)
• Included stringing tools: Starter clamp, Needle nose pliers, Cutter, Awl, load spreader for badminton stringing
• Included assembly tools: All necessary hex keys
• Machine is ready to use for tennis, squash , or badminton racquet stringing
• Product Code: WR8401501001

Click here for the Wilson Baiardo L user manual
